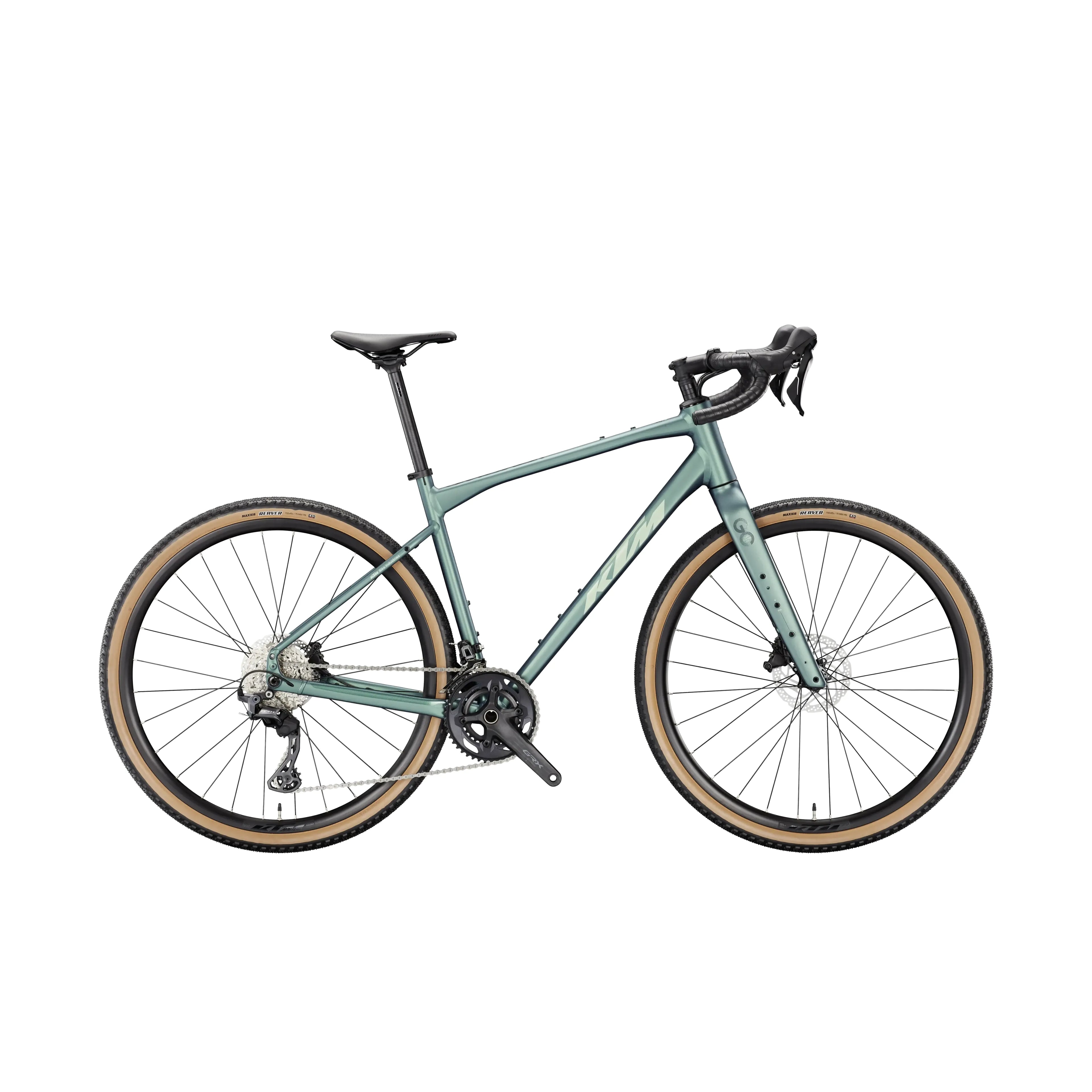

KTM Gravelator 10 – Shimano GRX 2x12

The KTM Gravelator 10 is a triple-butted AL6061 aluminum gravel bike designed for those who want to start or progress on gravel with a reliable and wide-range Shimano GRX 2x12 setup. A carbon fork with clamps, 45 mm tires, and balanced geometry for comfort and stability on dirt roads, gravel roads, and sporty commuting.

Main features

• AL6061 TB frame with UDH : robust, responsive and compatible with modern groupsets.

• Shimano GRX 2x12 drivetrain : RX820 Shadow+ rear derailleur and RX820-2 front derailleur for stable, quiet shifting.

• 46/30 – 11/36 gear ratios : very wide range for climbs and fast flat terrain.

• F17 carbon fork with mounts : stiffness and versatility for racks/bags.

• Disc brakes with Shimano RT30 160mm rotors: reliable power and modulation.

• Maxxis Reaver 45mm tires : smooth rolling and grip on compact surfaces.

• Ergonomic cockpit : KTM Comp II Road 420 mm drop and KTM Comp 7° stem.

• Declared weight : 11.2 kg .

Technical specifications

Frame and fork

• Frame : Gravelator 10 AL6061 TB / R5070 / UDH

• Fork : Gravel Carbon Fork F17 with stems

Transmission

• Rear derailleur : Shimano GRX RX820-12 Shadow+

• Front derailleur : Shimano GRX RX820-2

• Shifters : Shimano GRX RX610 (right/left)

• Crankset : Shimano GRX RX610-12 , 46/30

• Cassette : Shimano HG710-12 , 11–36

• Chain : Shimano M6100-12

Brakes

• Rotors : Shimano RT30 Center Lock, 160 mm

Wheels and tires

• Tires : Maxxis Reaver EXO 45-622

Components

• Handlebar : KTM Comp II Road 420 mm

• Attack : KTM Comp 7°

• Tape : KTM tape

• Seatpost : KTM TEAM II 27.2 × 400

• Saddle : Selle Royal SRX

Weight

• Bike : 11.2 kg

• Maximum rider weight : 120 kg

Why choose it

The Gravelator 10 combines the versatility of 2x12 with a modern aluminum frame and a carbon fork: a solid, comfortable and complete gravel bike, ideal for those looking for a versatile vehicle for training, traveling light and tackling challenging climbs without sacrificing speed.
